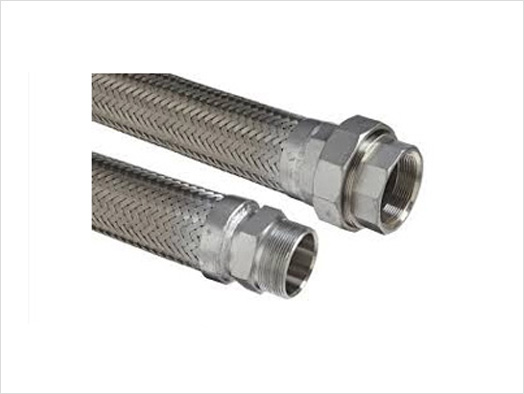

Stainless Steel Hose Assemblies

What Do We Offer?

We can supply a complete hose assembly, irrespective of the type of end connection or the type of material needed. Some of the stainless steel flexible hose assemblies that we offer include;

• Assemblies with Standard End Fitting: These fittings are available in carbon steel, stainless steel SS-304, SS-316 etc. Male and female end fittings are also available in rolled bronze, gunmetal, and also as per customer requirements. Flange connections with fixed and floating flanges are available to meet the DIN, ANSI, ASA, IS standards. Go here to know more about flanged stainless steel fittings.
• Assembly with Internal Liner (Interlock Liner): When the velocity of the fluid, which is transferred through the stainless steel corrugated hose, is more than 25 meters/second (for liquid) and 50 meters/second (for gases), it may create a turbulent flow that causes abrasion and extra pressure drop, damaging the hose. Thus, to prevent this, a flexible interlock liner is used.
• Exhaust Hose Assembly: Exhaust hoses are strip wound metal hoses with polygonal or round cross-sections engaged or interlocked profile. These are square profile, interlock and double interlocked with or without seal (asbestos thread or copper wire) depending upon the application which will transfer through it. End fittings are available as per the customer’s requirement and the respective application.
• Jacketed Hose Assembly: Jacketing is often used instead of electric tracing when conveyants must be maintained at a specified temperature. Jacketed hose assemblies are manufactured from stainless steel SS-304, SS-316L and SS-321. The size range starts from 1/4” NB core flexible hose to 6” NB. Flexible jacketed hoses start from 1” NB to 10”.
• Assembly with External Guard: Use of external flexible armour/guard protects the stainless steel flexible corrugates hose from abuse due to rough handling, sharp bending, abrasion, etc. Sometimes asbestos, ceramic covering or any other insulation material is used in external guard and armouring. These external guards are made by SS-304, SS-316L, galvanized steel.
• Line Assembly: An internal flexible metal liner is used when high conveyant velocities are required. This prevents damage and reduces abrasion.

Advantages of India Flex Stainless Steel Hose Assemblies

• India Flex stainless steel hose assemblies are engineered to perfection and are flexible & durable. They also allow for quick and easy installation and replacement.
• These braided stainless steel hose assemblies are resistant to high pressure and have a higher tear and tensile strength. They are also resistant to fire, abrasion, humidity, moisture, and penetration.
• They come with anti-corrosive properties and can withstand extreme temperatures, which makes it ideal for the transportation of very high and low-temperature liquid or gas.
• These flexible metal hose assemblies comply with all standards of ISO requirements.
• They come in longer lengths, which makes it easier to install them in tight quarters. They also come with greater heat insulation capabilities, and the larger bend radius facilitates smoother flow/less flow resistance.
• These stainless steel braided hose assemblies also absorb vibration and noise from engines, pumps, compressors, etc as well as compensates for thermal expansion/contraction of piping.

Industries and Application Areas

• Refineries, steel plant, paper plant, fertilizer, and pharmaceuticals industries.
• Lubrication system; Steam, hot water, pneumatic services; and Vacuum system.
• Railways, ports & shipyards, cryogenic service, air-conditioning & refrigeration. Absorption, piping, boilers and vibration.
